Shims

Solid, high-quality stainless shims to guarantee accurate alignment for your machines.

Simplify your alignment procedures! Solid, high-quality stainless shims are supplied individually, marked with their size thickness. Available in six different dimensions and ten different thicknesses, each size is designed to fit a whole range of ISO standard electric motor feet to guarantee accurate alignment for your drives.

Poor alignment is the most common cause of excessive vibration in machines, causing a waste of energy as well as damage to bearings and couplings. In turn, this increases your operating costs and reduces the efficiency of your machines, ultimately influencing company profitability.

The shims come in packs of ten and also in assortments of cases for ease of use. High-quality, accurate, and individually marked, they help cut the time for machine alignment to an absolute minimum. Quantity discounts are available.

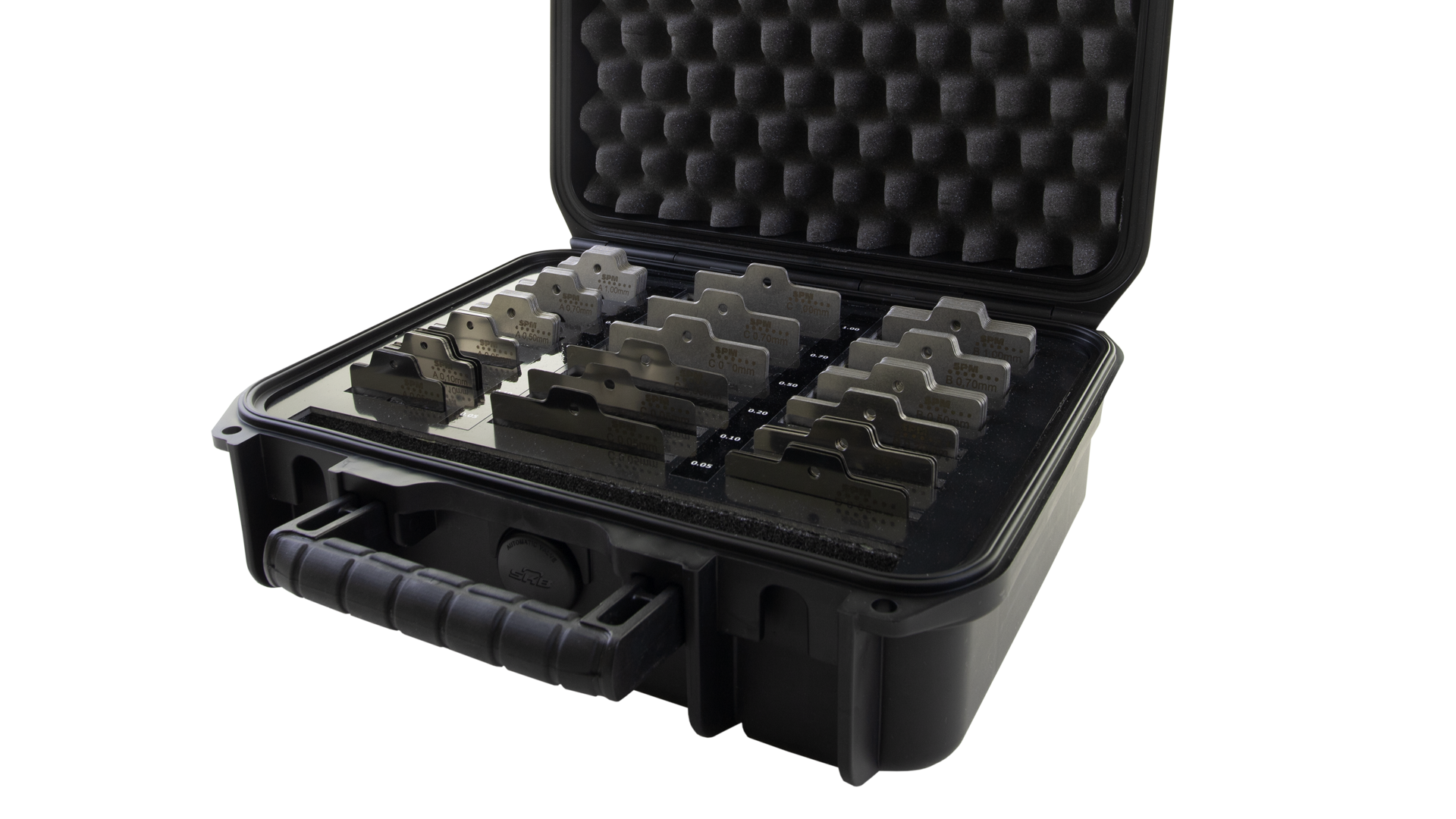

SPM shims placed in a carrying case

Technical overview




10 stainless steel shims, single thickness

  Ordering numbers
Dimension (mm) Thickness (mm)
A B C 0.05 0.10 0.20 0.40 0.50
55 50 15 A-005 A-010 A-020 A-040 A-050
75 70 23 B-005 B-010 B-020 B-040 B-050
90 80 32 C-005 C-010 C-020 C-040 C-050
125 105 44 D-005 D-010 D-020 D-040 D-050
200 200 55 E-005 E-010 E-020 E-040 E-050
200 200 85 F-005 F-010 F-020 F-040 F-050
10 stainless steel shims, single thickness

  Ordering numbers
Dimension (mm) Thickness (mm)
A B C 0.70 0.80 1.00 2.00 3.00
55 50 15 A-070 A-080 A-100 A-200 A-300
75 70 23 B-070 B-080 B-100 B-200 B-300
90 80 32 C-070 C-080 C-100 C-200 C-300
125 105 44 D-070 D-080 D-100 D-200 D-300
200 200 55 E-070 E-080 E-100 E-200 E-300
200 200 85 F-070 F-080 F-100 F-200 F-300

Contact your SPM representative to learn more and discuss your needs.
