CMM System

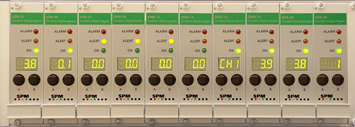

The CMM system is a permanently installed continuous condition monitoring system, consisting of transducers, converters, and combined display and control modules.

The CMM system consists of single and dual-channel modules measuring shock pulses on bearings, vibration severity according to ISO recommendations, and temperature. The measuring results are output as analog 4-20 mA signals, sent to display units with relay functions, and/or to a PLC or another computerized monitoring and control system. Measuring ranges and alarm levels are selected according to the technical requirements. Remote warning via mobile phone can be used.

Transducer lines are automatically monitored for short and open circuit. Parts exposed to harsh environments are robust, non-corrosive, sealed, or waterproof. Ex-proof equipment is available. Using low voltage installations and signals, which are not sensitive to electric disturbance, CMM provides a safe and reliable monitoring system.
